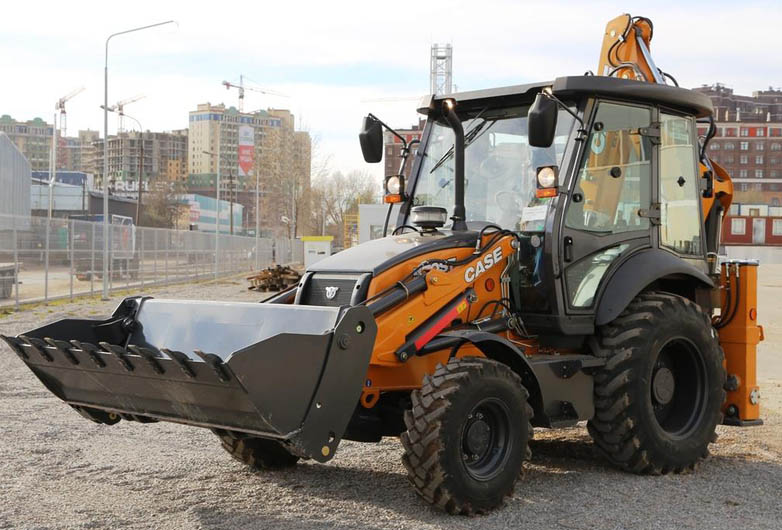

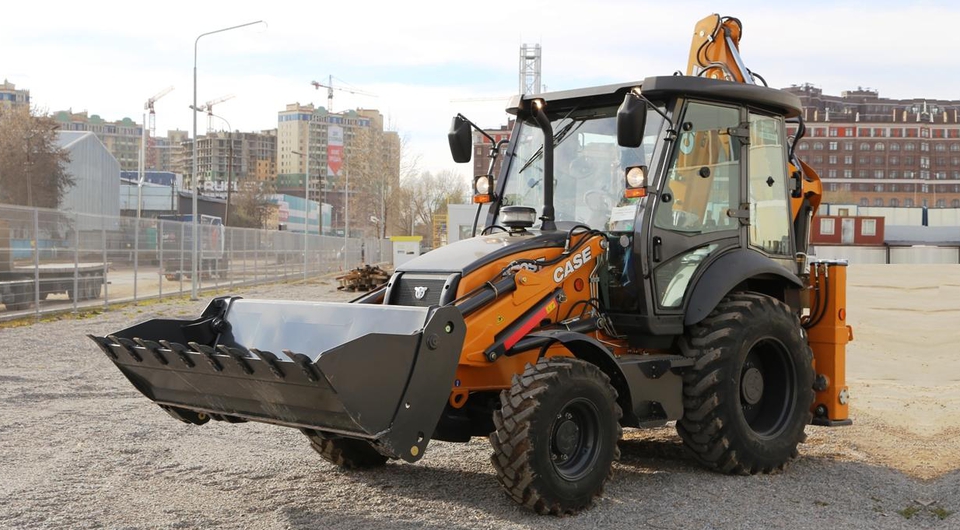

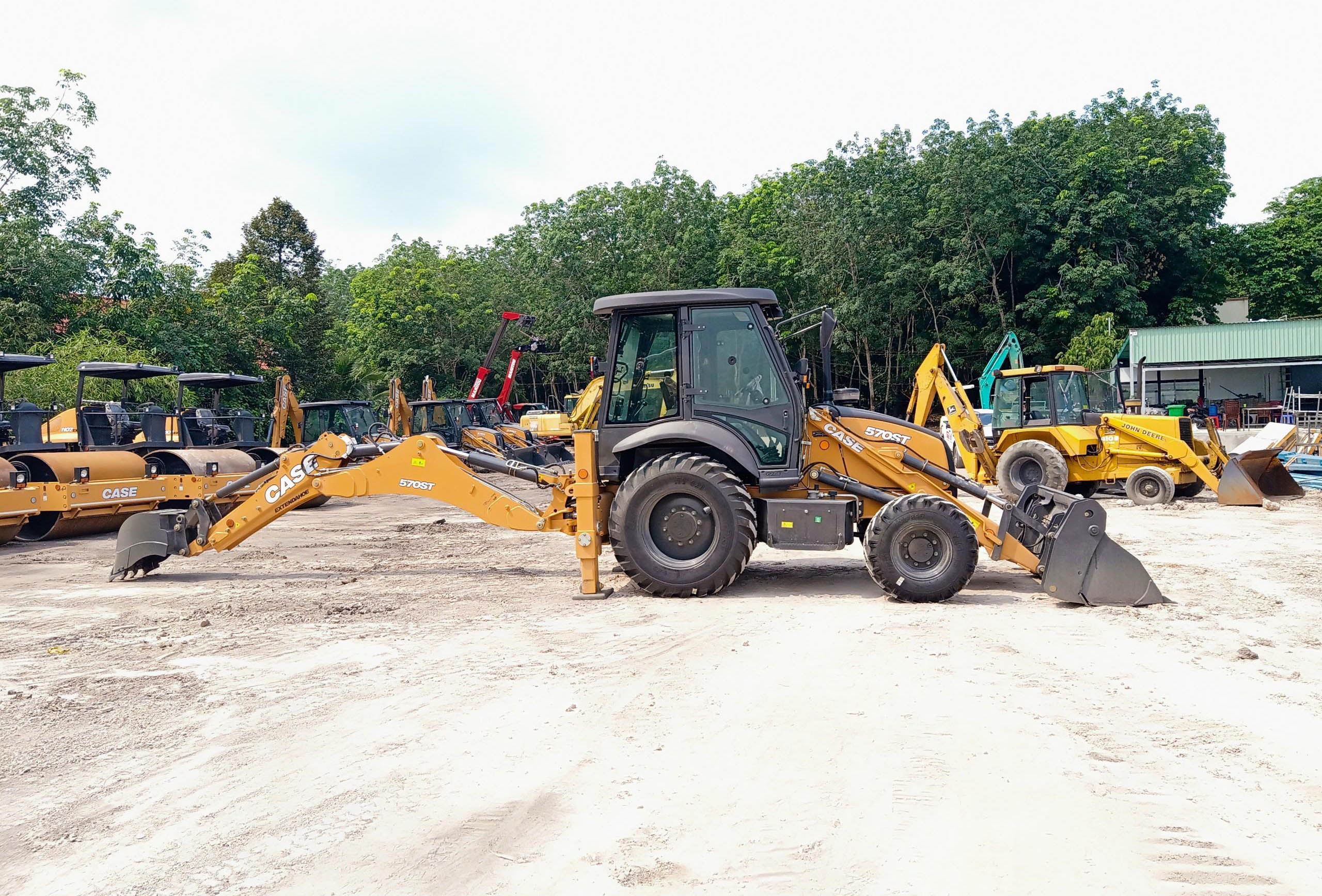

MAIN REASONS to choose the T-SERIES BACKHOE LOADERS |
EASY ACCESS Traditionally CASE backhoe Loaders are recognized for easy components as well as cab accessibility. All the controls are easy to reach for maximum performaces and safety. |
HIGH VISIBILITY Excellent visibility for all operations with loader or backhoe. Fully openable front and rear glasses for excellent cab ventilation. |
STRAIGHT LOADER ARM Above any limit the CASE loader ensure highest loading capacity in the market combined with bestin class tipping height. The self leveling mechanism during the lifting phase makes the operator more productive, precise and provides better driving comfort. |
FAST LOADING CYCLE The return to dig mode guarantees precise automatic loader repositioning and easy to control loading operations. (Standard option for 570ST |
HIGH EFFICIENCY The S8000 FPT engine with high power and torque density provides the best-in-class performances in any application either with backhoe or front loader. |
EXTENDAHOE Improved backhoe operation: the extendahoe is the perfect solution for working conditions where the digging depth is crucial. It enlarges the backhoe capacity making the CASE backhoe loader comparable with a middle size excavators. |
CASE DNA “S-tyled backhoe”: The new Backhoe represents the continuity of CASE DNA. Performances: lifting capacity, digging depth, digging force raises a new standard on this machine segment. Higher productivity on 570ST thanks to closed center hydraulic system and high flow oil pump. |
SAFE AND easy MAINTENANCE All the main check point can be easily reached from the ground. The front tilting engine hood and the perfect components layout ensures fast routine operations. |
POWERSHUTTLE TRANSMISSION WITH TORQUE CONVERTER The power shuttle transmission with torque converter allows smooth cycles and stall free operations. The electro hydraulic reversing as well as the cutoff button ensures comfortable and fast travelling. |
A. GENERAL INFORMATION |
|
Manufacturer |
CASE (USA) |
Assembly |
INDIA Factory |
YOM |
2021 |
Model |
570ST |
Operating weight |
7350 Kgs |
B. ENGINE |
|
Maker |
FPT |
Model |
S8000 (8040.45/TCA) |
Number of cylinder |
04 |
Displacement |
3.9l |
Horse Power |
97Hp@2200rpm |
Fuel |
DO (Diesel) |
C. TRANSMISSION |
|
Power Shuttle with 4 forward/reverse travel gears, 02 wheel drive 04 wheel drive by selecting mode. Max. Speed: 39.2 Km/h |
|
D. CAB |
|
Type |
ROPS / FOPS |
Air Conditioner |
Attached in CAB |
E. GENERAL DIMENSION |
|
Overall width |
2450 mm |
Overall length |
5580 mm |
Cabin height |
2868 mm |
Transport height |
3800 mm |
F. WORKING CAPACITY |
|
Loader bucket type |
4 in 1 function bucket with loader, clam, dozer, scraper and bottom dum function). |
Bucket capacity |
1m3 |
Dump height |
2720 mm |
Load over height |
3.275 mm |
Max lifting capacity@max height |
3700Kgs |
Backhoe Type |
Sideshift frame and extendhoe dipper arm |
Bucket capacity |
0.12m3 |
Max dig depth |
5.583 mm |
Reach ground level to swing center |
6.195 mm |
Max load over height |
4376 mm |
We offer all the customers for the amount of 2,000 working hours or 1 year warranty period which comes first for any technical faults. During the warranty time, TIQE will be responsible for repairing and replacing spare parts without any charges in case of manufacturing defects or technical faults with the warranty policy of CASE manufacturer
