ELECTRIC PALLET TRUCK - NEW PRODUCTS
Product code: SPAP 131-07 (FRANCE FACTORY)
Manufacturer: LINDE (GERMANY)
Model: T20SP
Capacity: 2000 kg
Manufacturer year: 2021
Working height: 125 mm
Hotline contact: +855 882 877 888
For best consultancies support
Send quotation requirement
Product information
Technical data
Warranty, guarantee
|

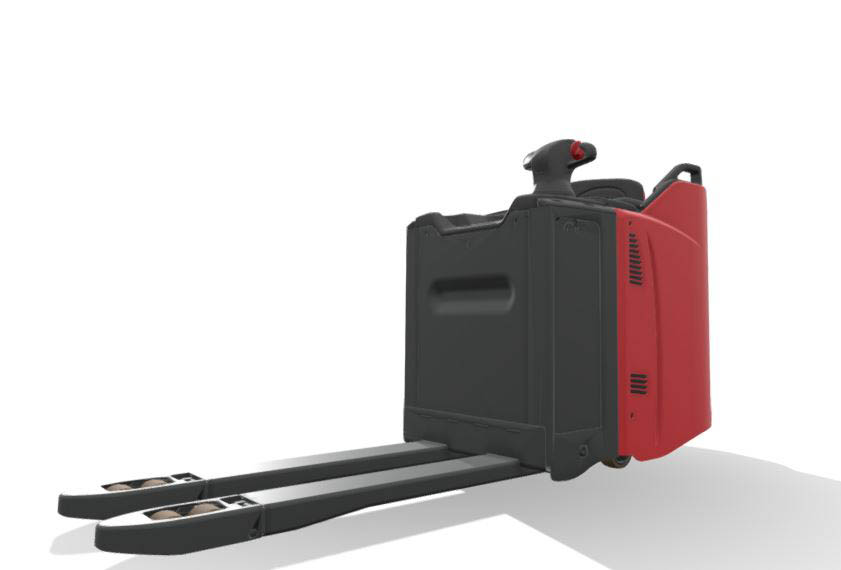

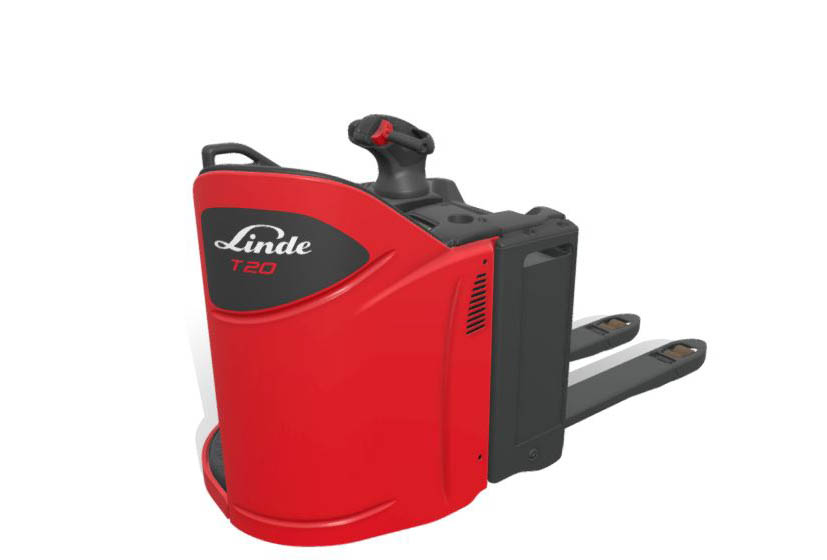

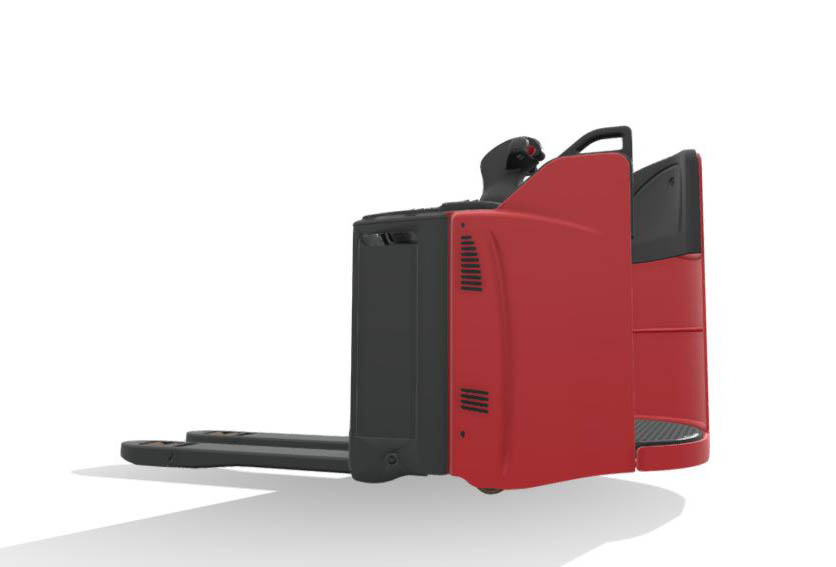

PLATFORM PALLET TRUCK CAPACITY 2000 AND 2500 KG T20 SP/AP, T25 SP/AP Series 131-07 |
|
Perfect ergonomics, quick work processes

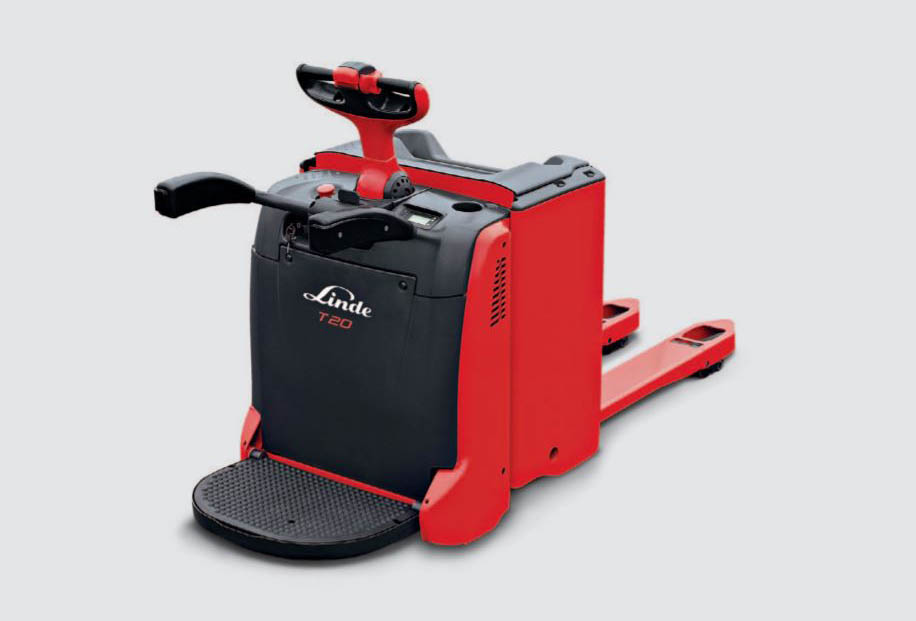

The T20 – T25 AP/SP Linde pallet trucks offer tailored ergonomic working conditions for the driver. Linde's basic concept is flexible. In the AP model, the driver can move the standing platform up, and fold down the steering tiller. The platform truck changes into a full-service pedestrian model as needed. In contrast, the SP mode has a fixed standing platform. The truck has an e-driver controller from Linde, with which the operator stands at a right angle to the direction of travel and can see both forward and backward. Many maneuvers are therefore much easier and can be done more quickly. The pallet trucks have a maximum lifting capacity of 2000 or 2400 kg depending on the model. Lithium-ion batteries are also available. |
|

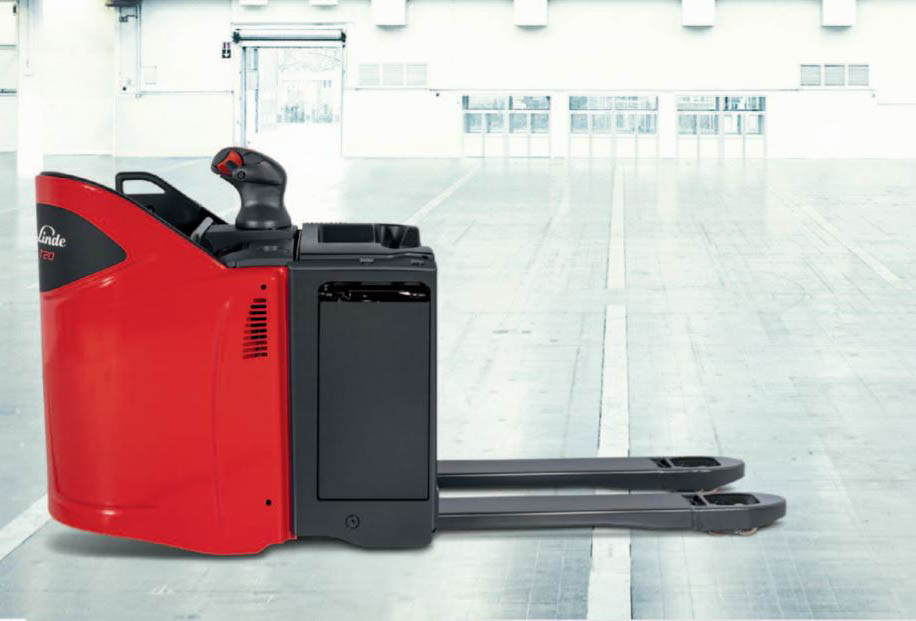

Safety High performance combined with safety. The wraparound steel chassis keeps the operator safe from impacts while working (SP). A low, steel skirt surrounding the stand-on platform protects the operator‘s feet and legs (SP). The operator‘s body remains safely within the chassis contours at all times while operating the truck (SP). |
|
Performance Highly efficient productivity is the Linde pallet truck’s true strength. Their performance derives from a powerful 3 kW AC maintenance-free drive motor and active stabilizing castor wheels. Rapid acceleration and impressive travel speed combined with efficient braking in all conditions. This all adds up to outstanding productivity ratios in every type of application. |
|
Comfort The ergonomic 45° driving posture of the SP version,enables effortless, stress-free multidirectional working with excellent all-round visibility. A padded backrest and cushioned standon platform provide added comfort. The optional fully suspended operator compartment keeps the driver concentrated and maintains high efficiency levels throughout the working shift. |
|
Reliability The highly durable, robot welded construction of the SP and AP ensures consistent reliability and long life in demanding applications. Each heavy cast fork tip can support a load of 2,000 kg without deformation. Smooth entry into bottom boarded pallets is assisted by the ski contours of the underside of the fork tips. The arrow shaped fork tips also facilitate easy entry into every type of pallet and through shrink wrapping for fast, efficient and safe load handling |
|
Service Efficiency at work and efficiency in servicing with cost effective maintenace routines. Easy access to all components and maintenance-free technology also play their part. CAN bus connectivity provides a computerised diagnostic system for rapid analysis to ensure maintenance intervals are minimised. |
FEATURES
Total drive system
Electronically controlled, hydraulically suspended castor wheels automatically select optimum ratio between stability and traction Automatic electric braking when traction lever is released to neutral Smooth counter current braking and no roll back on gradient starts Proportional electromagnetic braking on drive motor initiated by emergency isolator or release of pressure on deadman switch.
Ideal 45° driving position
The 45° driving posture (SP) provides effortless multi-directional driving Superbly functional Linde e-driver controls Cushioned platform and padded backrest Outstanding stability with automatic slowdown when cornering Fully suspended operator compartment (Option)
Workstation
Digital multifunction display Truck access control by unique PIN code or by ignition key Wide and deep storage compartments for wrapping paper, work gloves, writing utensils, etc.
CAN bus connectivity
On-board diagnostics and CAN bus interface Provides service technician with rapid access to all truck data for performance parameter settings, trouble shooting and preventative maintenance
AC motor
Powerful 3 kW drive motor Moisture and dust proof motor is maintenance-free The truck accelerates smoothly to 10 km/h in less than 5 metres Power settings optional up to 12 km/h (SP) Gradient performance 13% fully laden No roll back on gradient starts High torque motor negotiates loading docks with ease
Power steering for comfort and safety
Self-centring, power assisted steering keeps truck on track in a straight line (SP) Steering effort adjusts automatically to speed and turning radius Speed is automatically reduced in relation to the steering angle The result is effortless manoeuvring and safe, highly efficient load handling
|
Manufacturer |
LINDE (GERMANY) |
|
Assembly |
FRANCE Factory |
|
YOM |
2021 |
|
Model |
T20SP/AP T25SP/AP |
|
Load capacity |
2000 – 2500 Kgs at load center 600mm |
|
Lift up |
125 mm |
|
Lift down |
80 mm |
|
Fork length/width |
1150 mm / 680mm - Option |
|
Travel speed |
10km/h with load/without load |
|
Operated |
Standard on (Fit Platform) |
|
Wheel |
Poly Urethane |
|
Fuel |
Electric |
|
Battery |
24V-375Ah (Option) |
We offer all the customers for the amount of 2,000 working hours or 12 months warranty period which comes first for any technical faults. During the warranty time, TIQE will be responsible for repairing and replacing spare parts without any charges in case of manufacturing defects or technical faults with the warranty policy of LINDE manufacturer.
