PALLET STACKER - NEW PRODUCTS
Product code: L10/C/P 1169 (CHINA FACTORY)
Manufacturer: LINDE (GERMANY)
Model: L10/P L12/P L14C/P
Capacity: 1400 kg
Manufacturer year: 2021
Working height: 4266 mm
Hotline contact: +855 882 877 888
For best consultancies support
Send quotation requirement
Product information
Technical data
Warranty, guarantee
|

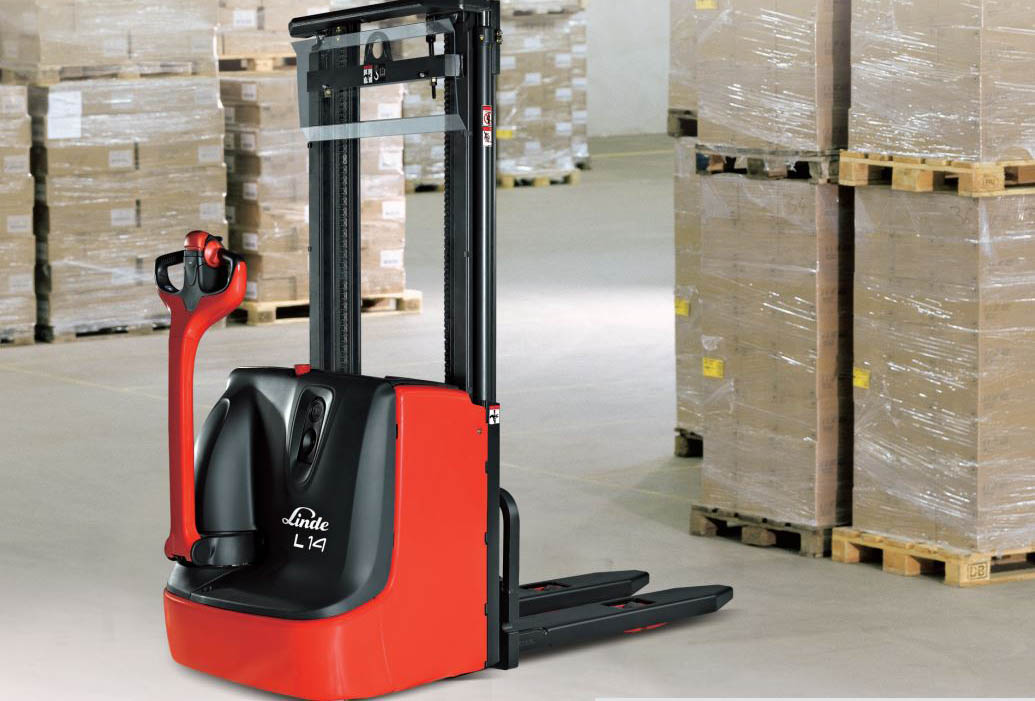

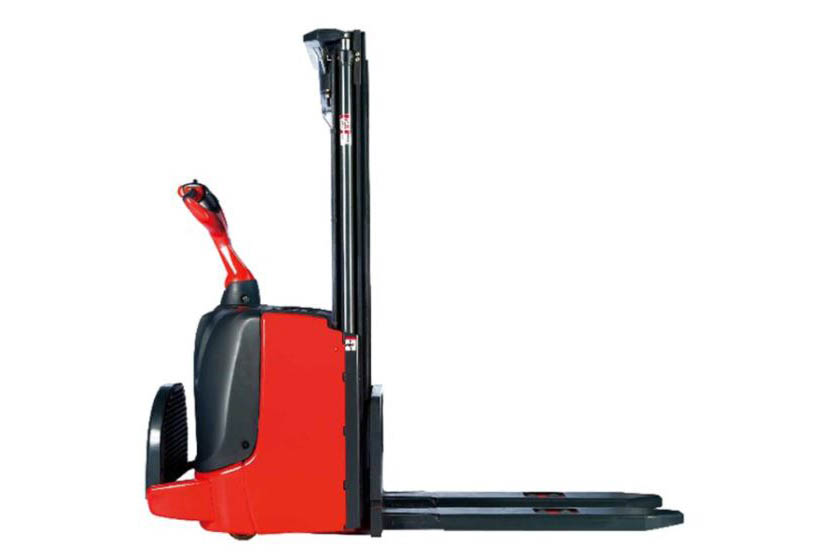

ELECTRIC PALLET STACKERS - CAPACITY 1000 TO 1400 KG – L10/L10P – L12/L12P – L14C/L14P Series 1169 |
|
Safety The hand guards of the off-centred tiller head effectively shield hands and keep the operator safety within the truck's contours with excellent visibility through the mast. The long tiller mounted low down on the chassis ensures ample safety clearance between operator and truck. |
|
Performance The combination of a new AC motor and Linde LAC digital control makes these pallet stackers highly efficient. Operating parameters can be adjusted to match any application. The OptiLift® mast control provides accurate, fully proportional lifting and assures quiet smooth operation. |
|
Comfort All controls on the ergonomic tiller can be easily operated by either hand. A Creep speed button offers utmost manoeuvrability in confined areas. Proportional speed automatically alters traction speed in relation to the truck/operator distance. Finished in tactile materials, these trucks deliver accurate load handling for better productivity |
|
Reliability Despite their visual appeal, these pallet stackers are rugged and durable. The mast channels are made from high grade rolled steel sections for strength and durability. Strong, longlasting, with memory effect, Exxtral® motor and battery cover protect the technical compartment from outside shocks. |
|
Service t is not just about the truck in operation: a maintenance-free AC motor maximises uptime reducing operating costs. All truck data is immediately and easily accessible to the service engineer via the CAN-bus architecture. Fast, easy access to all internal components ensures service tasks are completed with a minimum of delay. |
FEATURES
Steering system
Proportional speed control varies truck speed automatically in relation to the tiller angle for safe, comfortable and productive operation A C r e e p s p e e d b u t t o n e n s u r e s h i g h manoeuvrability in confined areas when operating at low speeds with the tiller in the upright position End-of-stroke resistance on the tiller avoids accidental, abrupt braking Soft tiller fold-back slows down the tiller when returning into upright position, avoiding the tiller snapping on the motor cover
Lifting system
OptiLift® mast control provides accurate, fully proportional lifting as well as smooth, quiet operation Wide range of mast options available

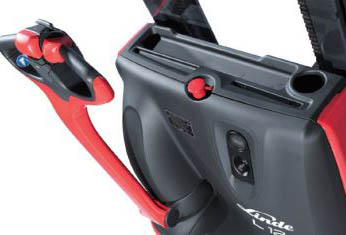

Working station & display
Wide, deep storage compartment for shrink wrap, pens, markers etc. Strong Exxtral® motor and battery cover last the lifetime of the truck Multifunctional display as standard with hourmeter, maintenance indication, battery discharge indicator, fault code

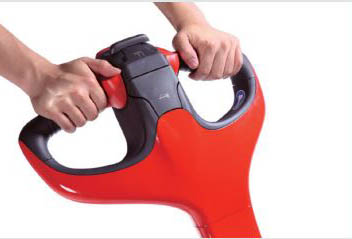

Tiller & tiller head
Off-set, ergonomic Grivory® tiller head ensures safety and visibility Long tiller with low mounting point provides safety clearance between operator and chassis Wrap-around hand protection Comfortable controls, operable with either hand and gloves

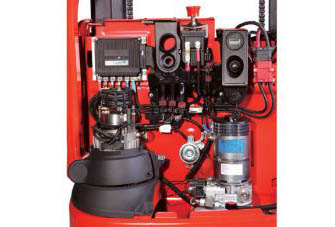

Maintenance and Can-bus architecture
Zero maintenance, moisture and dust-proof AC motor CAN-bus architecture enables fast, easy access to all truck data Individually adjustable parameters via diagnostic plug Rapid and convenient access to main components via front service panel
|
Manufacturer |
LINDE (GERMANY) |
|
Assembly |
CHINA Factory |
|
YOM |
2021 |
|
Model |
L10 / L10P – L12/L12P – L14C/L14P |
|
Load capacity |
1000 – 1400 Kgs at load center 600mm |
|
Lift up |
Up to 4266 mm |
|
Mast type |
Standard, Duplex Triplex mast |
|
Fork length/width |
Option |
|
Travel speed |
6 km/h with load/without load |
|
Operated |
Pedestrian, Platform. |
|
Wheel |
Poly Urethane |
|
Fuel |
Electric |
|
Battery |
24V |
We offer all the customers for the amount of 2,000 working hours or 12 months warranty period which comes first for any technical faults. During the warranty time, TIQE will be responsible for repairing and replacing spare parts without any charges in case of manufacturing defects or technical faults with the warranty policy of LINDE manufacturer
