KONE CRANES

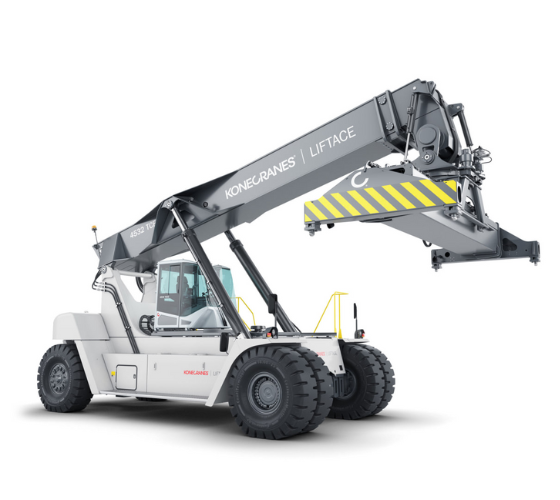

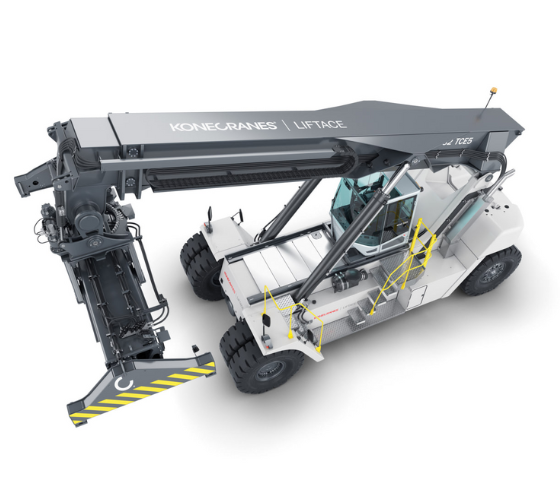

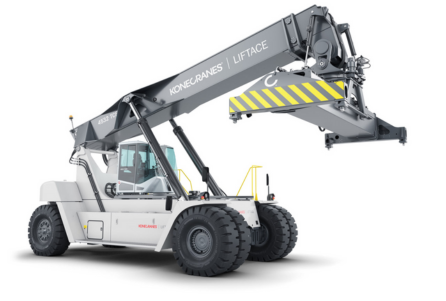

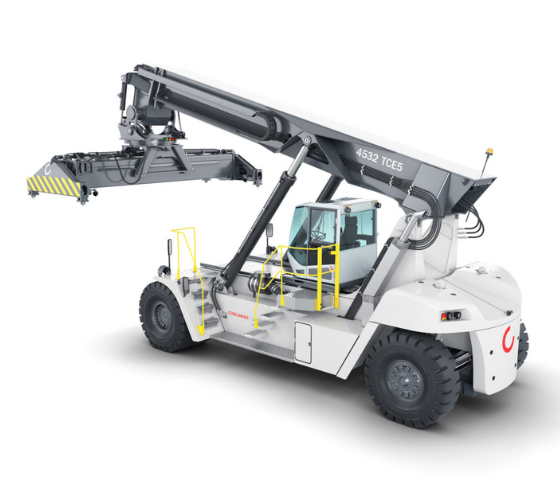

10 – 80 tons REACH STACKERS WITH HEART

Remarkable versatility FROM CONTAINERS TO INDUSTRIAL CARGO

We have a long history of working with container ports and intermodal terminals that are expert buyers and operators of reach stackers. Our container handling customers demand a lot of us, and we have a long track record of meeting their requirements year after year.

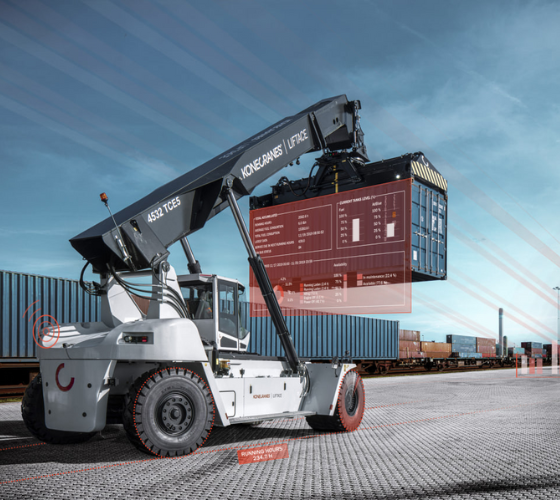

Larger reach stackers are needed for railroad stacking. To load and unload on more than one track you need a flexible reach stacker with a large lifting capacity and an extended set of functions. You will find a reach stacker in our range that will meet the specific requirements of your terminal.

Industrial workhorses

We also work with many industrial companies that need customized reach stackers for their specific industry. Our reach stackers are remarkably adaptable to industrial cargo handling. We provide special spreaders incorporating steel grabs, lifting magnets, vacuum grippers and coil C-hooks among other attachments. What kind of material do you need to lift and move? Contact us. You’ll probably find we have plenty of experience in your industry and can provide the ideal reach stacker.

Applications

• Container ports and terminals

• Railroads and intermodal

• Trimodal river handling

• Transport, shipping and logistics

• Steel and aluminum

• Automotive

• Oil and gas

• Wind power

• Nuclear power

• Waste-to-energy

Made with heart in every detail SMARTER WHERE IT MATTERS

Konecranes has been manufacturing, selling and supporting heavy-duty lift trucks for some 60 years. Buy a reach stacker from us today and you will get the latest technology, the lowest Total Cost of Ownership, and a reach stacker made with heart.

We claim the lowest Total Cost of Ownership with our reach stackers, understood as an equation running over a time period of years as shown below. When you’re shopping around the suppliers and comparing prices, our truck will probably not be the cheapest. But it will provide the best value over time.

Genuine KONECRANES parts

Genuine Konecranes parts are the best protection for your investment. They pay off in truck performance and uptime.

PARTS ONLINE > EASY TO FIND, EASY TO BUY

Real-time shipment information > You know where your parts are

Fast delivery > Parts in stock are in your hands within 1–3 days

Protection box > All the filters you need, in one package

Close to you

We sell our lift trucks around the world in two ways: directly via our own sales and service organizations in about ten countries, and indirectly via distributors in more than 80 countries. In both cases, our trucks are fully supported with quickly delivered spare parts and personalized service. Konecranes has the widest service reach of any company in the lifting business. And our distributors are some of the most respected in the business.

Service made easy

To reduce lifetime running and maintenance costs we have extended the service interval of the engine by 500 hours, the gearbox by 1000 hours and the hydraulics by 4000 hours. Our HLL ultra-fine filter system extends the hydraulic oil change interval from 4000 up to 12000 hours. In practice, you will use up to 80% less hydraulic oil than with a conventional hydraulic system.

1. Modern and durable lifting spreaders

Top-lift for 20/40/53 ft containers, 300 degrees rotation, 1600 mm total side-shift, 4 lift eyes for sling cargo. MPS mechanical (±2 deg) or HPS hydraulic pile slope (±6 deg). The combi spreader can also lift trailers and swap bodies with 4 folding lift legs.

2. Smart load-sensing hydraulics

They sense the load and adapt the lifting power to the weight of the load. The truck provides maximum power only when really needed, so it consumes less fuel while reducing emissions and noise

3. Powerful engine

Certified low-emission engine provides extra high torque at low revs for reduced fuel consumption and low noise levels. We offer a variety of engines for EU stage 2/3a/3b and EPA Tier 2/3/4i.

4. ErgoCab, probably  the best cabin on the market

Every detail has been carefully designed for comfort and safety. Controls, displays, ventilation and seating work to boost driver productivity. Excellent visibility in all directions

5. Intelligent Electronic Machine Control, EMC Master

Full monitoring of all the vital components and functions. Programmable settings. CanBus technology increases engine and transmission reliability.

6. Heavy-duty box-type chassis

The strongest on the market. The foundation of long-lasting high performance.

7. Maintenance-free brakes

Brakes with continuous oil cooling provide full braking power in every situation.

8 Excellent stability

Wide, strong drive axle and long wheelbase. The two keys to excellent stability for safe lifting of heavy loads.

ErgoCab

TRULY SPACIOUS, REMARKABLE VISIBILITY

Customized precisely as you need.

Step inside and you will find that ErgoCab is truly spacious: there is plenty of room for the driver and any extra equipment you might require.

You will also be struck by the remarkable visibility. The windows are very large. There are no corner posts, and the roof cross member is very strong but thin. We have done everything possible to ensure clear sightlines to the key working areas, both in the front, to the sides and to the rear.

You can customize ErgoCab precisely as you require for your container handling operation. Select the joystick, joystick panel, steering wheel, driver’s seat and instrumentation that you need. Also available: a hydraulic sliding cabin (stroke 2900 mm), a vertically movable cabin RHS (stroke 2850 mm), and EMC remote control.

1 Remarkable visibility

Visibility is very difficult to measure objectively: you just know it when you see it. Sit down in ErgoCab, see what visibility from a lift truck cabin can be.

2 Intelligent Electronic Machine Control

Our EMC Master system gives the driver real-time information on truck performance including full monitoring of the engine, transmission, hydraulics and joystick.

3 Left armrest mini-steering options

Optional, ergonomic steering solutions that improve productivity.

4 Ergonomic instrumentation

Whatever extra equipment you need, we can install it as part of an ergonomic instrumentation layout. ErgoCab is truly spacious.

5 Comfort

An excellent seat with compressor suspension, powerful cabin heating and ventilation, air conditioning – the driver is provided with every possible comfort.

6 Joystick control

Available with electronic joystick and auto throttle

STANDARD EQUIPMENT

OPTIONAL EQUIPMENT

BODY

BODY

Box-type chassis

Strong box profile and cross-members

Thick steel plate reinforcement, both front and rear

Safe, ergonomic access steps and hand rails LHS+RHS Strong lift cylinder and boom fixations in chassis

Lifting eyes, front and rear in the chassis/boom

Fire extinguisher on truck body or inside cabin

Fire fighting system for driveline compartment (semi-automatic)

Galvanized storage boxes with lid (on bottom step)

Central greasing unit for truck and spreaders

Standard colors

Custom colour painting, stickers & customer logos

Chassis, tanks, mudguards & rear: seagreen NCS S2555 B30G

Mast, carriage, spreader & axles: black RAL 7021

Cabin & engine hood: light grey RAL 70335

Steel mudguards

Different mud flap models, front and rear

STEERING AXLE

STEERING AXLE

Smooth power steering with double-acting cylinder

Wide steering angles providing small turning radius

Wheel nut protection and steering cylinder spacers

DRIVE AXLE

DRIVE AXLE

Kessler D81/102/106/111

Wide axle with 2-stage hub reduction and differential

Oil-cooled, maintenance-free wet disc brakes

DIESEL ENGINE

DIESEL ENGINE

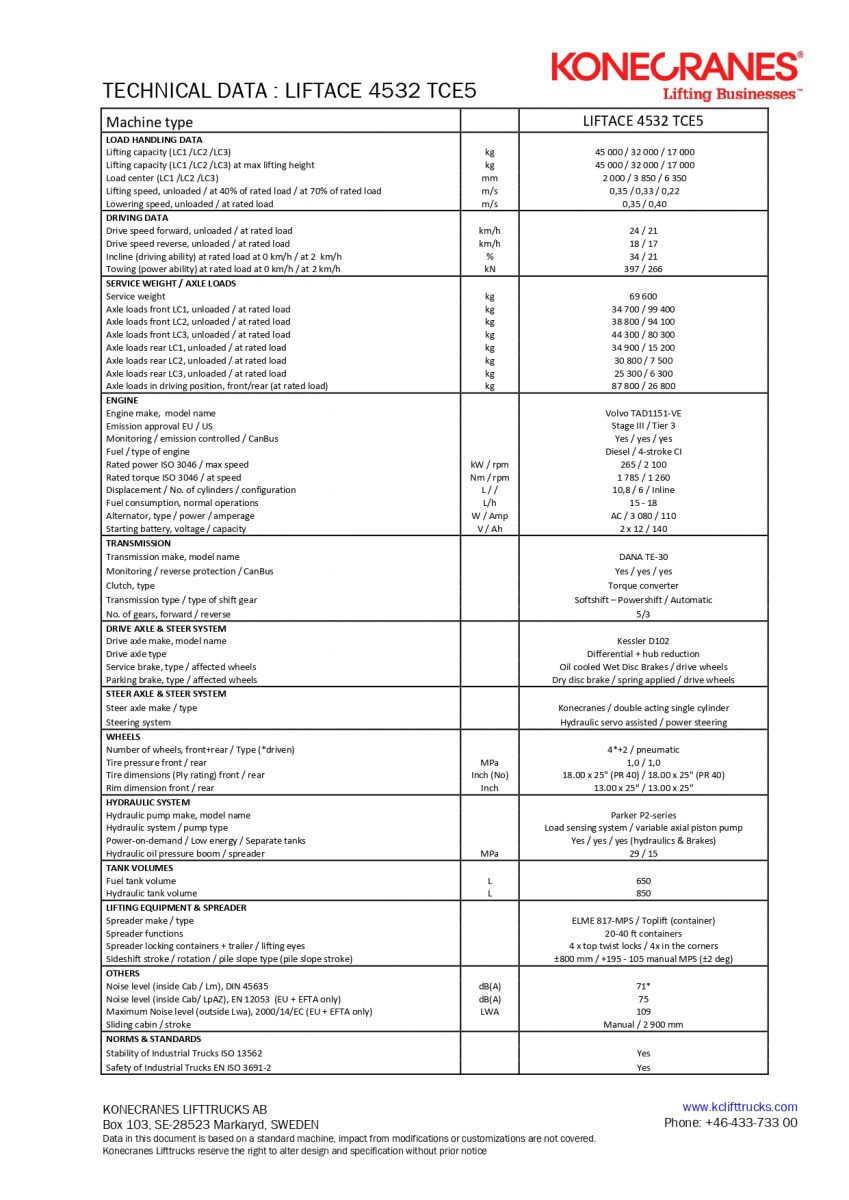

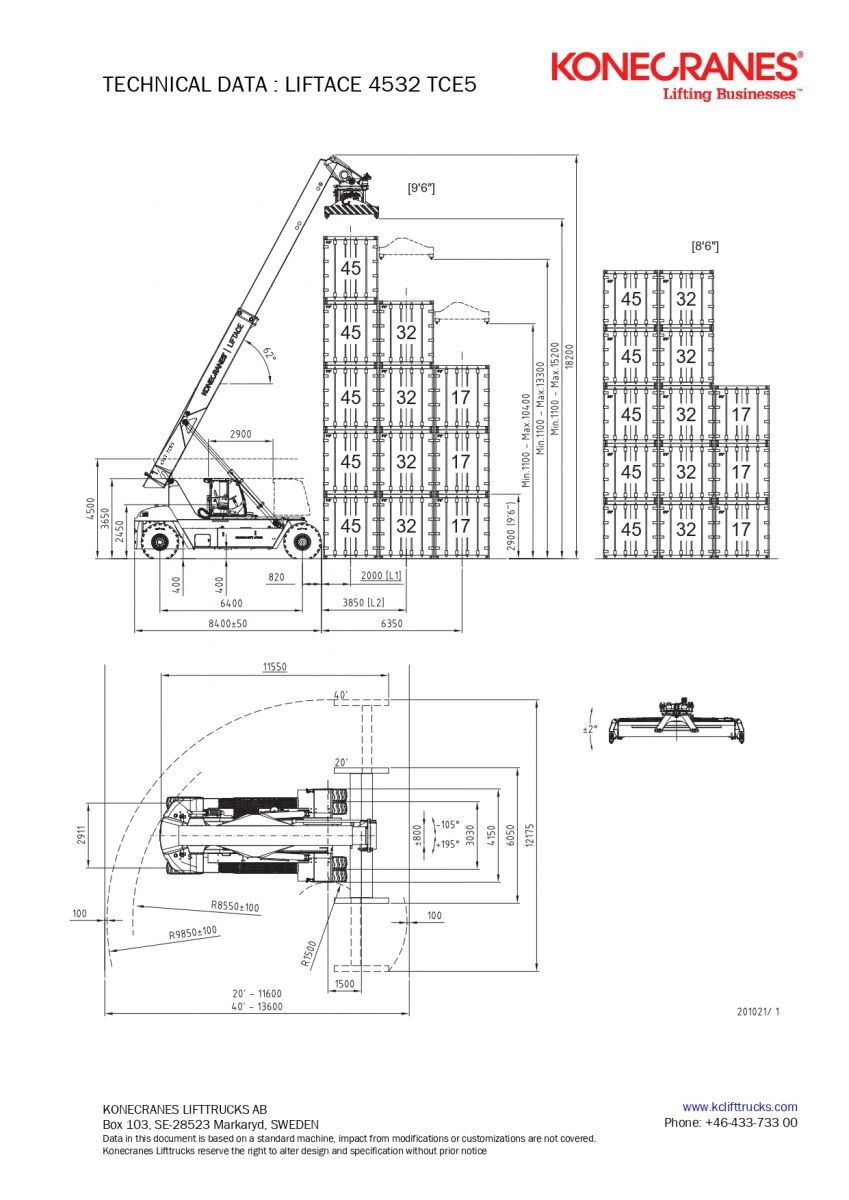

See technical info charts

SMV 108-2518: Volvo and Cummins (180–201 kW / 990–1180 Nm)

Certified for EU stage 2, 3A, 3B / EPA Tier 2, 3, 4i

SMV 4123-4545: Volvo, Scania and Cummins (256–294 kW / 1640–2172 Nm)

Low-emission

Certified for EU stage 2, 3A, 3B / EPA Tier 2, 3, 4i

Clean, powerful, fuel-efficient with CanBus controls

Low-emission

Clean, powerful, fuel-efficient with CanBus controls

Engine air filter, 2-stage type

Engine air filter Turbo II, 2-stage cyclone type

TRANSMISSION

TRANSMISSION

108-2518; DANA TE-17 (3+3 gears)

SMV 108-2518; ZF 4WG-191 (4+3 gears)

4123-4545; DANA TE-27 (4+4 gears)

SMV 4123-4545; DANA TE-32 (4+4 gears) and ZF 4WG-261 (4+3 gears)

Fully automatic, softshift

Fully automatic, softshift

Torque converter, smooth powershift, declutch, reverse protection, CanBus controls

Torque converter, smooth powershift, declutch, reverse protection, CanBus controls

COOLING SYSTEM

COOLING SYSTEM

Tropical, multi-radiator

Radiators for engine water, air for intercooler, oil for transmission

Extra radiator / cooling circuit for hydraulic system

Oil cooling / flushing for brakes

HYDRAULIC SYSTEM

HYDRAULIC SYSTEM

Load-sensing, power-on-demand

Smooth, accurate, high-speed lifting and lowering

Variable piston pumps with intelligent control

Leak-free ORFS couplings (O-ring) for entire truck

Large dual tanks for hydraulics and brakes with return filters (12 microns)

High pressure filters (12 um)

LL hydraulic longlife filters (3 um)

Hydraulic oil cooling circuit for working hydraulics

ELECTRICAL SYSTEM 24V

ELECTRICAL SYSTEM 24V

Alternator standard size 55–110 AH

Larger alternator, 80–150 Ah

Reverse alarm (beeping)

NearGuard RFID warning system (receiver and transmitters)

NATO starting aid contact

Built-in battery charger

Pre-heater for engine, transmission, hydraulics and cabin Power connections 400V/3-phase for multiple preheaters

LIGHTS

LIGHTS

Full road lighting (in Halogen): blinkers, brake lights, tail lights, position lights

Full road lighting (in LED): blinkers, brake lights, tail lights, position lights,

2 x Halogen high beam / low beam headlights front

2 x Halogen reverse lights rear

Extra work lights: Halogen (70 W), Xenon (3250 Lum), LED8 (1660 Lum) or LED16 (2900 Lum)

4 x Halogen work lights on lift boom

LED warning beacons

2 x Halogen work lights on spreader

ED strobe warning flash lights: front, rear or other position

CABIN

CABIN

ErgoCab size large (L), two doors

L x W x H = 1580 x 1450 x 1620 mm

Sliding cabin

TB models: manual sliding, stroke 1800 mm

TB models: hydraulic sliding, stroke 2900 mm

CB models: hydraulic sliding, stroke 2900 mm

TB/CB models: vertical moveable cabin RHS, stroke 2850 mm

Spacious, comfortable, excellent ergonomics

Excellent visibility: no front corner posts

Extra mirrors inside cabin

Reverse, front and spreader cameras with 6.7" display (MOTEC)

Powerful heating and cooling unit

Air conditioning or climate control unit (stepless fan speed)

Extra electric cabin heater 220V (DEFA

Extra diesel-powered cabin heater (Webasto)

Electrical connection 24V (1 x in cab roof RHS)

Extra electrical connections 24V (cab roof or front panel RHS)

Extra electrical connections 12V (cab roof or front panel RHS)

3 x windshield wipers / washers

Interval wiper speed switches: front, roof and rear windows

Adjustable seat, seat belt, steering wheel

Pneumatic compressor horn

Various seats BEGE, ISRI, Grammer

Additional seat dampening: single or double

Two-point or three-point seat belt

Seat heating

Extra trainer's seat, leather, fully-foldable LSH

Joystick (electronic servo / auto throttle)

Tire pressure monitor: cabin display, 6 tire sensors

Sun blinds: front, roof or rear windows, fixed or adjustable Alcohol lock / start-up prohibitor (Draeger)

Reverse alarm (beeping)

Universal mounting system for RHS for A4/A5 writing pad, keyboard, computer, monitor, com radio and reading lamp CD player / radio / MP3 player with dual loudspeakers

MACHINE CONTROL

MACHINE CONTROL

EMC Master intelligent machine control, display: MDL2, size 6.5”

+ Monitoring of engine, transmission, hydraulic system, service, electronic joystick, spreader, counters and info

+ EMC Safety, overload and load management system

EMC 106: Monitoring (diagnostics/parameters/settings)

EMC 102: Lever steering (with spring return to zero)

EMC 114: Electronic servo joystick (auto-throttle)

EMC 103: Lever steering (no spring return to zero)

EMC 123: ECO-Drive (fuel consumption, saving, settings)

EMC 104: Mini-wheel steering (speed progressive steering function)

EMC 124: Driver log-in (up to 20 drivers)

EMC 105: Mini-wheel steering (not progressive steering function)

EMC 125: DATA-Log (storage of alarms and errors)

EMC 107: Electronic weight scale (resolution 0.1 ton)

EMC 129: Productivity Hour Counter

EMC 112: Auto engine shut-down timer

EMC 130: Transport mode (boom/spreader position)

EMC 122: Drive speed settings (on/off, programmable)

EMC 126: GSM remote access

EMC 131: Vertical lift

EMC 132: Vertical lift / horizontal outreach

EMC 133: Remote control units for rail and barge handling NearGuard RFID warning system (receiver and transmitters)

BOOM

BOOM

2-stage box-type lift boom

Strong box profile and cross-members

Thick steel plate reinforcement, both front and rear

Long-nose boom to reach ground level (extended 1000 mm)

Long-nose boom to reach ground level (extended 1500 mm)

Distance piece (extended 1500 mm) between nose and rotator (for barge) Distance piece (extended 2000 mm) between nose and rotator (for barge)

SPREADERS

SPREADERS

SMV 108: ELME 517 (10 t)

Stops 20–40 ft, 4 floating twistlocks, rotation 300 deg

Extra stops at 24/30/35 ft

Mechanical Pile Slope ±2 deg, sideshift ±800 mm

Hydraulic Pile Slope ±6 deg

SMV 4127-4545 TB: ELME 817 (45 t)

Stops 20–40 ft, 4 floating twistlocks, rotation 300 deg, 4 lifting eyes

Extra stops at 24/30/35 ft

Mechanical Pile Slope ±2 deg, sideshift ±800 mm

Hydraulic Pile Slope ±6 deg

Power Damp Control (PDC) + tilt lock

Over-height folding legs 1600 and 2100 mm

Separate ELME 952/953 Bottom Trailer Lift (2/4 fold legs) Extra lifting eyes 2 x in centre or 4 x at 2500 mm distance

SMV 4123-4545 CB: ELME 857 (45 t)

Stops 20/30/40 ft, 4 floating twistlocks, 4 lifting eyes,

Extra stops at 24/35 ft

Hydraulic Pile Slope ±6 deg, sideshift ±800 mm

PDC Power Damp Control + tilt lock, 4 lifting legs

INDUSTRIAL HANDLING

INDUSTRIAL HANDLING

Models SMV 108-2518-4127-4545 TB

LME 7000 and 7010 tool carriers (50 and 65 tons

Steel slab grab, coil hook for coils, magnet for steel (mounted on tool carrier)

 Lifting hook on boom nose, free pivot, free rotation, no power (30–80 tons)

SERVICE AND PARTS

SERVICE AND PARTS

Standard warranty 12 months / 2000 hours

Extended warranty on truck and driveline (18–36 months / 3000–6000 hours)

Spare tires, rims, complete wheels: various brands

Spare part kits: basic, extended, special

Complete filter kits: 2000 hours up to 8000 hours
